轻触开关

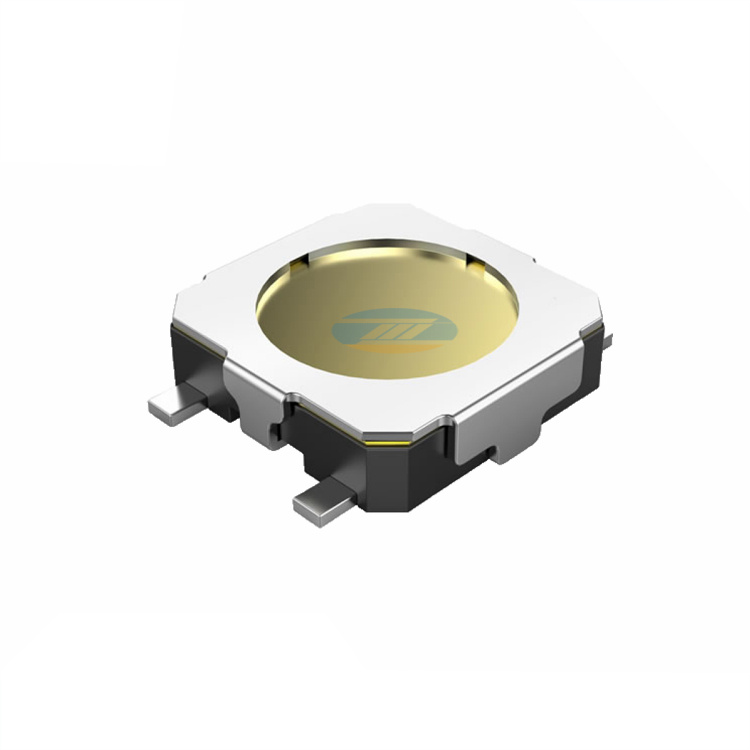

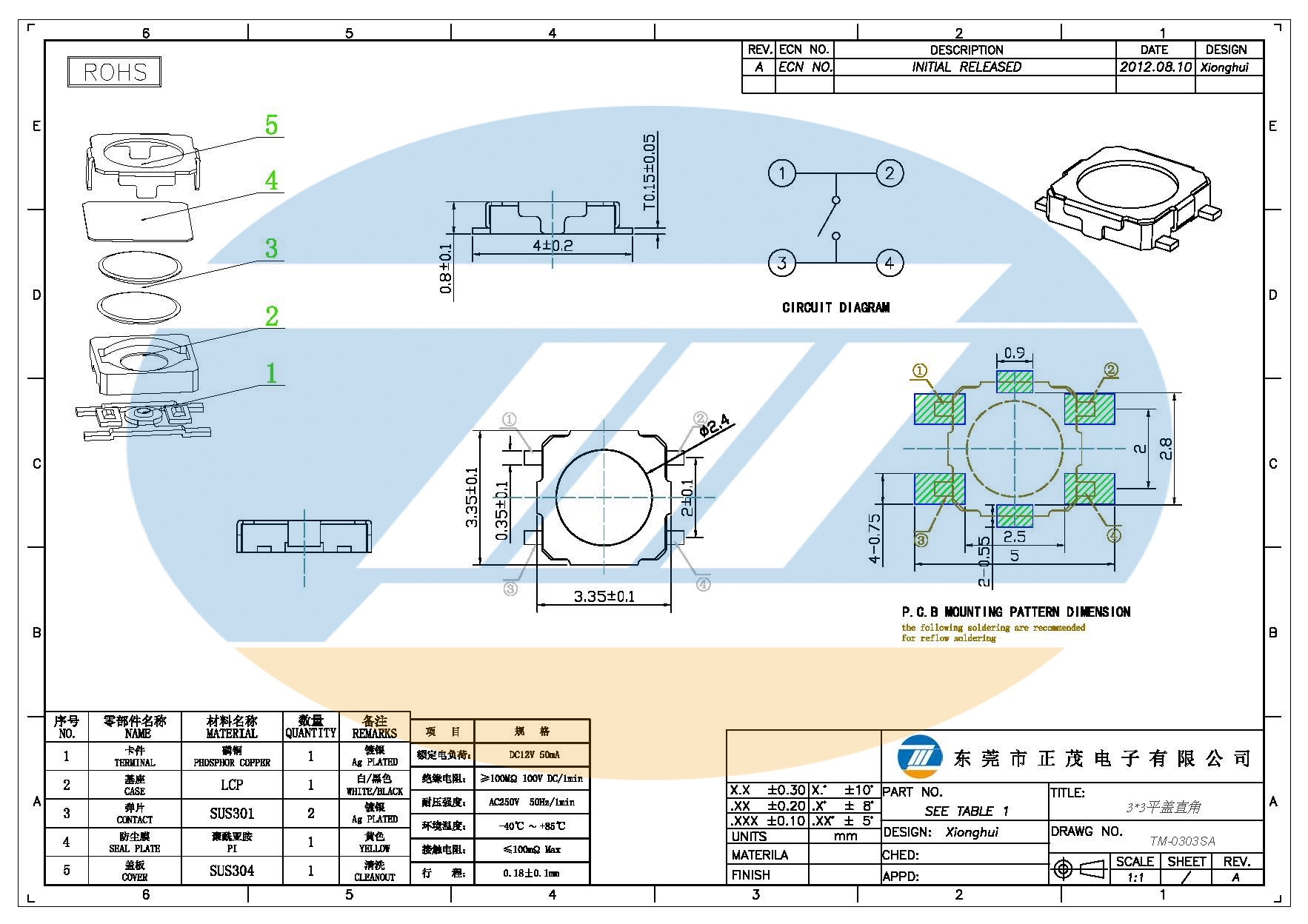

TM-0303SA

产品名称:3*3平盖直脚 超薄型

产品规格:3.35×3.35×0.8mm

声明:有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据,只代表内部的测试结果,如需详细参数请联系公司业务人员。

订购热线:18002870666

特性(Features)
◆ 适合于高密度贴装的表面贴装类型。
  Surface mount type suitable for high density mount.
 为整机产品的小型化、轻量化做出了贡献。
  It has made a contribution to the miniaturization and lightweight of the whole machine.
◆ 适应回流焊接。
  Adapt to reflow soldering.
 开关采用12mm 宽度载带包装。
  The switch is packed with 12mm width carrier belt.

用途(Applications
 用于要求薄型化的。轻量化的蓝牙音响设备、录像机、通讯设备、照相机、汽车电器、手机、电脑周边、蓝牙耳机、可穿戴设备等各种操作。
  For requiring thinning. Lightweight Bluetooth audio equipment, video recorders, communication equipment, cameras, car appliances, mobile phones, computer peripherals, Bluetooth headsets, wearable devices and other operations.


电性(Electrical
◆ 额定电流(Rating): 50 mA 12 VDC
◆ 绝缘电阻(Insulation resistance):100mΩ min. 100V DC
◆ 介电强度(Dielectric strength): 250V AC for 1min
◆ 接触电阻(Contact resistance): 100 mΩ max
◆ 操作温度(Operating temperture range): -25℃ to +70℃
◆ 寿命(Lifetime): 100,000 Cycles min
◆ 操作力(Operating force):180±40g
◆ 行程(Travel):0.18±0.1mm
